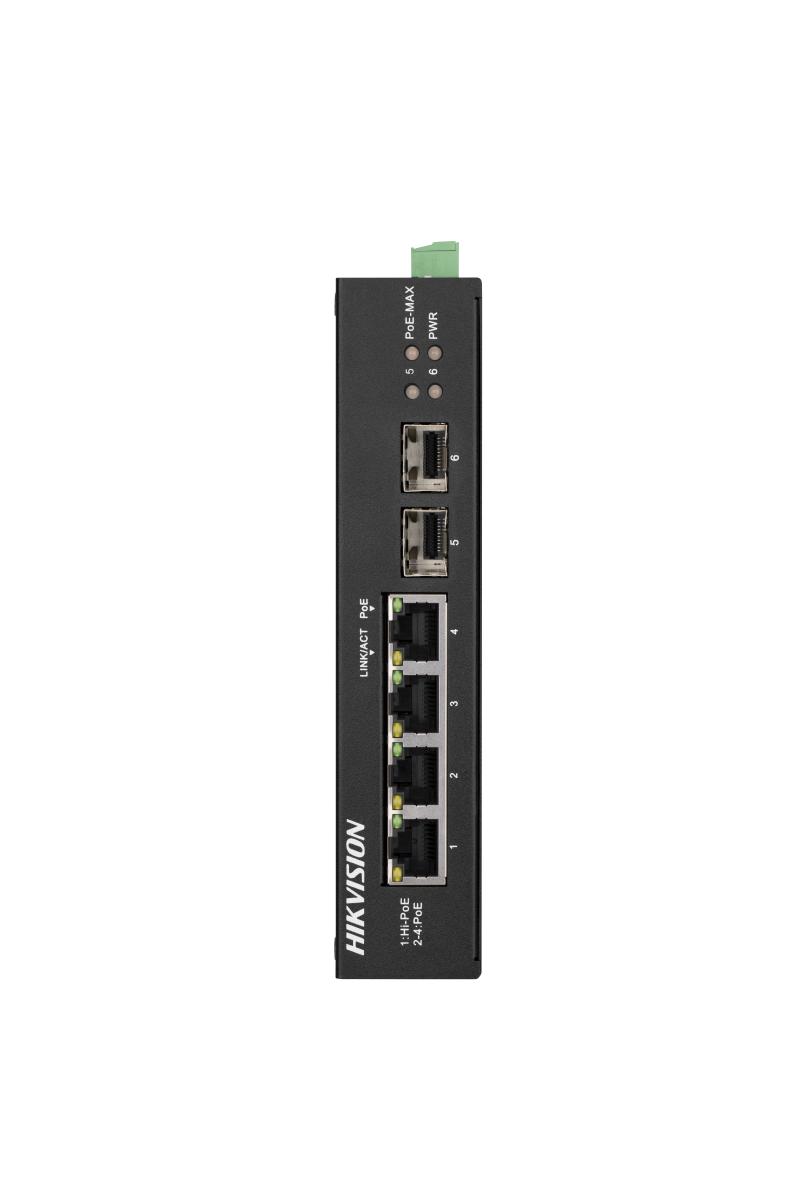

HIKVISION DS-3T0506HP-E/HS 4 Port Gigabit Unmanaged Harsh POE Switch
เพิ่มเมื่อ: 2025-05-03 16:34:35.0
แก้ไขล่าสุด: 2025-05-03 16:34:52.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comIndustrial POE Switch HIKVISION DS-3T0506HP-E/HS 4 Port Gigabit Unmanaged Harsh POE Switch
HIKVISION DS-3T0506HP-E/HS
Industrial POE Switch HIKVISION DS-3T0506HP-E/HS 4 Port Gigabit Unmanaged Harsh POE Switch
- 3 × gigabit PoE port, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical port.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 kV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- PoE watchdog to auto detect and restart the cameras that do not respond.
- Port isolation to improve network security.
- Wire-speed forwarding.
- Wider temperature (-30 °C to 65 °C) design.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Ports : 4 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table : 2 K
Switching Capacity : 12 Gbps
Packet Forwarding Rate : 8.928 Mpps
Internal Cache : 1 Mbits
PoE Standard : IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port :
Hi-PoE: Port 1
PoE: Ports 2 to 4
Max. Port Power :
Port 1: 60 W
Ports 2 to 4: 30 W
PoE Power Budget : 65 W
Shell : Metal material, fan-free design
Net Weight : 0.38 kg (0.84 lb)
Gross Weight : 0.94 kg (2.07 lb)
Dimensions (W × H × D) : 158.0 mm × 101.2 mm × 31.6 mm (6.22'' × 3.98'' × 1.24'')
Operating Temperature : -30 °C to 65 °C (-22 °F to 149°F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 48VDC, 1.35A
Max. Power Consumption : 65 W
Power Consumption in Idle : W
Installation Mode : Desk-Mounted,Rail
Surge Protection : 6 KV
Long Range :
Ports 3 to 4: up to 300 m
Long range performance may vary depend on camera model or cable condition.
Port Isolation : Ports 1 to 4: port isolation mode to improve network security.
PoE Watchdog : Ports 1 to 4: auto detect and restart the cameras that do not respond.
